DIGITAL DISPLACEMENT TRANSDUCERS (BLOCK GAUGES)

Home Products SENSOR SYSTEMS, LINEAR PROBES AND LASER MICROMETERS

TECHNICAL DETAILS

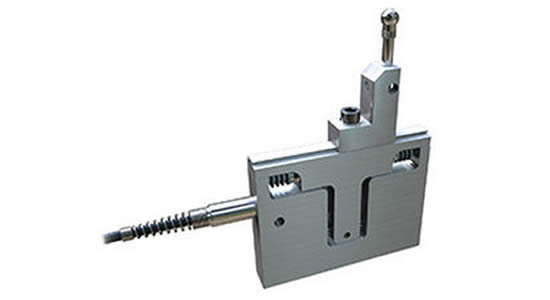

  • DK - Block Measurement

DK - Block Measurement

DK - Block Measurement

  • Sensitivity better than 1 µm
  • Excellent Repeatability Up to 0.25 µm
  • Measuring range 2, 5 & 10 mm
  • Spring or Pneumatic Actuated
  • Different installation options for Top Tools and Toolholders

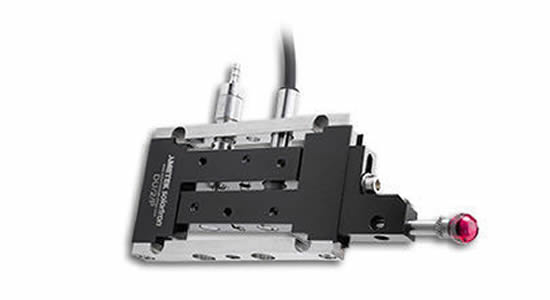

  • DU - Flexible - Spring and Pneumatic

DU - Flexible - Spring and Pneumatic

DU - Flexible - Spring and Pneumatic

  • 0.5, 1, and 2 mm pitches
  • Width 4 mm (0.5 mm range)
  • Sensitivity better than 1 µm
  • Repeatability 0.05 µm
  • Pneumatic or spring driven (pneumatic only 1 and 2 mm)
  • Detachable parts for easy repair
  • IP65 Protection

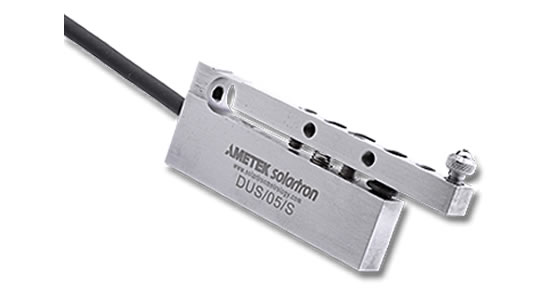

  • DUS - Single Leaf Flexible

DUS - Single Leaf Flexible

DUS - Single Leaf Flexible

  • 0.5mm range
  • Spring driven
  • Normal or reverse operation
  • External arms
  • IP65 Protection

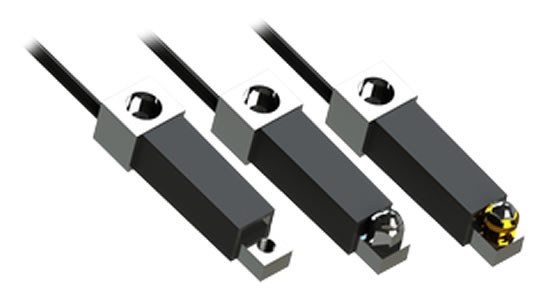

  • DUSM - Mini Flexible

DUSM - Mini Flexible

DUSM - Mini Flexible

  • Sensitivity better than 1 µm
  • Excellent Repeatability <0.5 µm
  • Measuring range 0.5 mm
  • IP68 Protection
  • Multi End Settings
  • Robust design in compact dimensions

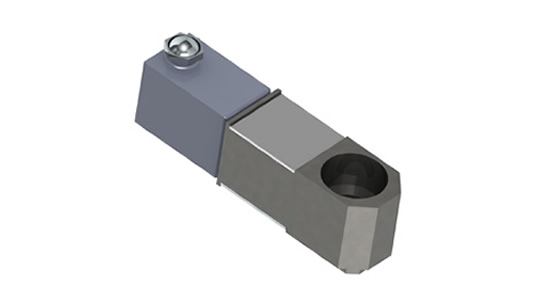

  • DM - Mini Probe

DM - Mini Probe

DM - Mini Probe

  • Sensitivity better than 1 µm
  • Measuring ranges 0.5 and 1 mm
  • Spring driven

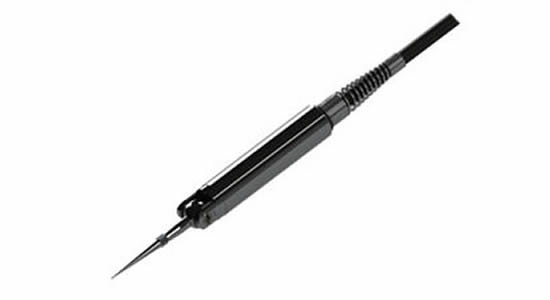

  • DL - Lever Probe

DL - Lever Probe

DL - Lever Probe

  • Sensitivity better than 3 µm
  • Measuring range 0.5 mm
  • Spring driven
  • 20 g tip force from 2 g
