Extended Depth of Field, also known as focus stacking, is a digital image processing technique that combines multiple images taken at different focal distances to produce a larger depth of field (DOF) image than any individual source image. Focus stacking can be used in any situation where individual images have a very shallow depth of field.

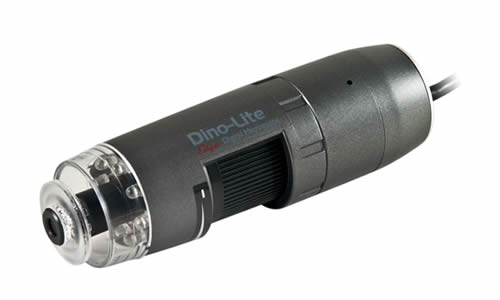

DINO-LITE HIGH MAGNIFICATION
Basic features:
With magnification up to 900x
1.3 megapixels or 5 megapixels
With or without polarization filter
Aluminum alloy body or composite body
Extended Depth of Field (EDOF)
Edge series with Extended Dynamic Range (EDR)
DINO-LITE LONG WORKING DISTANCE
Basic features:
Magnification from 5 to 140x
Long working distance of up to 22.5 cm
1.3 megapixels or 5 megapixels
With or without polarization filter
Aluminum alloy body or composite body
Extended Depth of Field (EDOF)
Edge series with Extended Dynamic Range (EDR)
DINO-LITE SPECIAL ILLUMINATION
Many specific applications in science, forensics, industry, engineering or medicine require special lighting. Dino-Lite models have been created for many special applications, with ultraviolet lighting, infrared lighting, fluorescent lighting or combinations between different types of light.
DINO-LITE SPECIAL ILLUMINATION ULTRAVIOLET (UV)
The Dino-Lite AM4113T-GFBW digital microscope is optimized for research and viewing fluorescent objects using blue LEDs. It has a 510nm emission filter designed to observe green fluorescences, including but not limited to GFP (green fluorescent protein). Compared to the bandpass emission filters of traditional fluorescent microscopes, the Dino-Lite's high pass emission filter provides visibility and sensitivity over a wider range of fluorescent waves. Green fluorescent objects pop out under the microscope, you can clearly see their green glow. AM4113T-GFBW has the ability to change the light source from blue to white LEDs in order to find objects easily and focus easily.
DINO-LITE SPECIAL ILLUMINATION FLORESAN
Dino-Lite handheld microscopes with fluorescent leds to detect fluorescence from 395 nm to 610 nm.
DINO-LITE HIGH SPEED REAL TIME

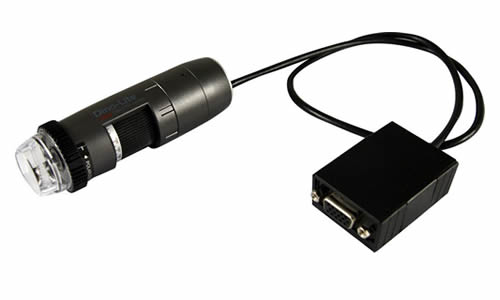

All models on this page are also available with an aluminum alloy body for enhanced protection, durability and the best look and feel. To work in environments where you do not want to use a computer or require real-time video streaming, a Dino-Lite with DVI, VGA or direct TV connection may be the best solution.
DINO-LITE MOBILE / WIRELESS
Use your Dino-Lite microscope wirelessly on my ipad, iphone or other mobile devices.
The WF-10 WiFi Streamer allows the Dino-Lite USB models to be used wirelessly on any tablet, smartphone, or computer in conjunction with an Android / iOS (iPhone / iPad) application. The WiFi Streamer is ideal for fieldwork or presentations. Broadcast to multiple devices via a single Dino-Lite. The WF-10 has a replaceable battery and the Dino-Lite can be used anywhere to generate a WiFi signal for live view transmission.
DINO-EYE LENS CAMERAS
With DinoEye eyepiece cameras, you can turn a digital microscope into a traditional microscope. With the DinoEye lens, you can replace the digital microscope eye (eyepiece) and connect it to your computer via USB. DinoEye TV models can be connected directly to the TV using a TV connection. The included dedicated DinoCapture software provides a professional software environment for image or video processing, including calibrated measurement capabilities (USB models).
