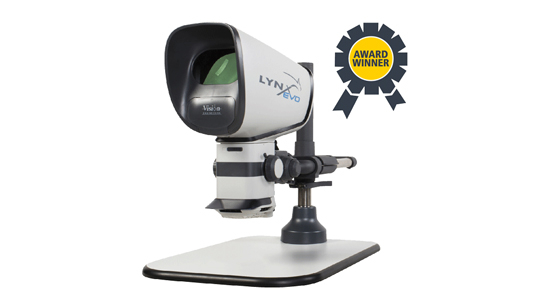

Sub-stage illumination option, course and fine focus
Lynx EVO Angled View Configuration
For an angled view of the subject
With height, slide and rotational adjustments
Ideal for inspection & with generous space for reworking

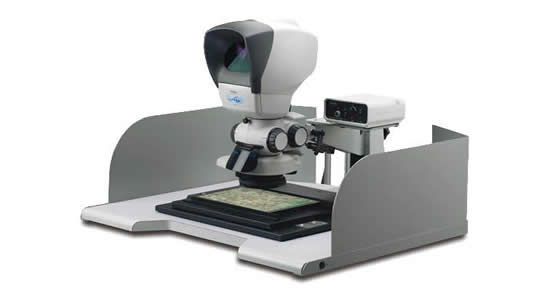

Lynx EVO With EVOTIS
Advanced inspection workstation
For large area subjects e.g. PCBs, and multi-layer components
Quick and efficient inspection of fine detail
Zoom Ratio – 10x
Objective Lenses
Magnification range
Working Distance (mm)
Max Field of View (mm)
0.45x
2.7x – 27x
176
55
0.62x
3.7x – 37x
128
40
1.0x
6x – 60x
75
25
1.5x
9x – 90x
42
16
2.0x
12x – 120x
29
12
Zoom Ratio – 15x With 1.5 Multiplier
Objective Lenses
Magnification range
Working Distance (mm)
Max Field of View (mm)
0.45x
2.7x – 40x
176
55
0.62x
3.7x – 55x
128
40
1.0x
6x – 90x
75
25
1.5x
9x – 135x
42
16
2.0x
12x – 180x
29
12
Zoom Ratio – 20x With 2.0 Multiplier
Objective Lenses
Magnification range
Working Distance (mm)
Max Field of View (mm)
0.45x
2.7x – 54x
176
55
0.62x
3.7x – 74x
128
40
1.0x
6x – 120x
75
25
1.5x
9x – 180x
42
16
2.0x
12x – 240x
29
12
With 360° Optical Viewer
Viewer Setting
Rotating View
Direct View
Magnification range
4.2x – 42x
6.8x – 68x
with 1.5 Multiplier
4.2x – 63x
6.8x – 102x
with 2.0 Multiplier
4.2x – 84x
6.8x – 136x
Working Distance
35.5mm
56.5mm
Max Field of View
10.2mm
12mm
Viewing Angle
34°
N/A
Stand Options
Ergo stand
Small footprint, high stability for high magnification use. Optional substage illumination. Floating stage can be fitted.

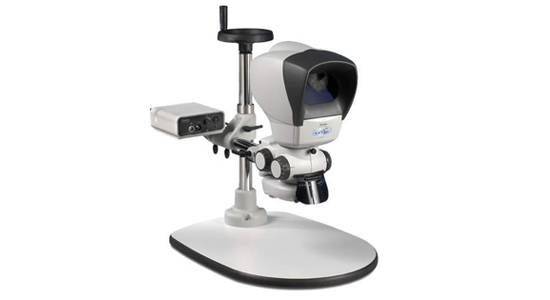

Multi-Axis stand
Precise and robust. Ideal for industrial application where maximum work space is required. Counterbalanced for quick, effortless, adjustability. Available with direct mounting to work surface or platform base (sub-stage base option is also available).
Camera (optional)
Smart Cam
Smart Cam 5
Sensor type
CMOS
CMOS
Resolution (H x W)
1600 x 1200 pixels
2560 x 1920 pixels
Sensor size
1/3″
1/2″
File formats
BMP, JPG, PNG, AVI
BMP, JPG, PNG, AVI
Supplied software
ViCapture
ViCapture
Software Options
ViCapture
Image and video capture (supplied with camera).
DimensionOne
Image capture, annotation, on-screen measurement.
DimensionTwo
Image capture, annotation, on-screen measurement, camera control.
VifoxEVO
Image capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting.
ViPlus
Image capture, annotation, on-screen measurement, camera control, reporting.
Standard power 100V-240V, 50/60Hz, available in all worldwide plug configurations.
