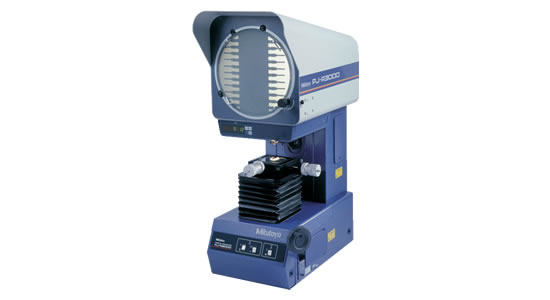

High cost performance with high degree of operability
Stage-size selectable standard model with a screen diameter of 300mm
Built -in digital counter with large characters for good readability

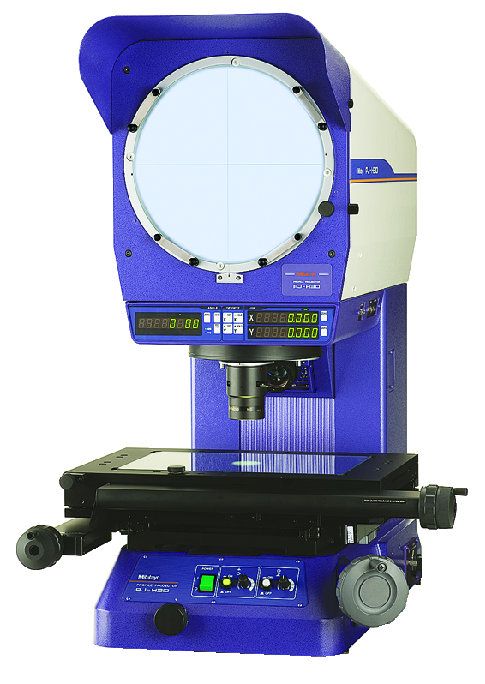

Measuring Projector PJ-H30 Series
This measuring projector has adjustable incident illumination.
The PJ-H30 offers you the following benefits:
By rotating the condenser lens and changing the angle of the mirror in the objective, you can represent even poorly reflecting surfaces optimally.
Improved light intensity of a projected subject thanks to the new optical contour illumination system.
High measuring accuracy (above JIS standard).
Measuring stage with rapid single-handed adjustment on both axes enabling you to switch smoothly between quick positioning and fine adjustment.
Constant current power supply unit with acceleration control to maximize the service life of the halogen lamp.
Easily read digital counter with large digit display.
The PJ-H30D models also offer you a built-in precision edge detector (Optoeye).
RS-232C output.
Measuring Projector PV-5110
This measuring projector is a robust stand-alone device.
The large rotatable screen guarantees you good observation and easy measuring.

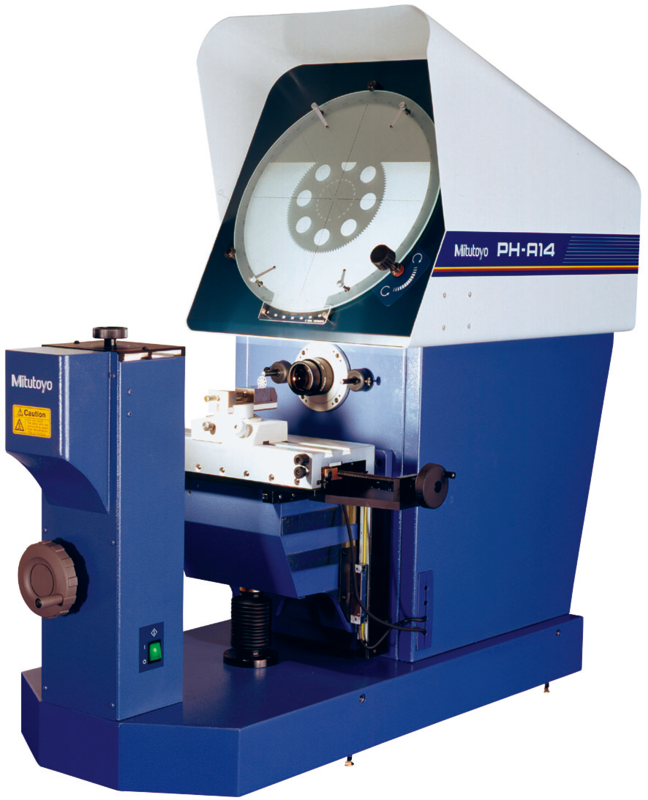

Measuring Projector PH-A14
Due to the PH-A14’s horizontal-beam illumination, you can easily measure larger and heavier workpieces including toothed racks and punching tools.
You can use the projector for a wide range of applications due to its generous 203 x 102 mm stage travel and 45 kg allowable stage loading.
PH-A14 Measuring Projector

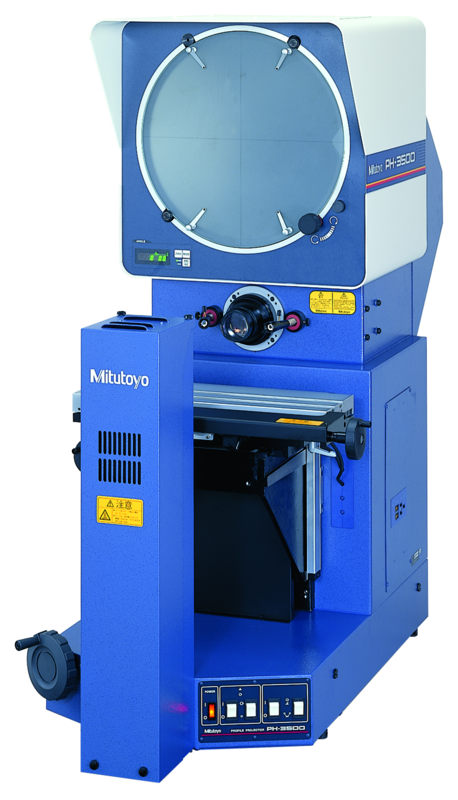

Measuring Projector PH-3515F
Due to the PH-3515F’s horizontal-beam illumination, you can easily measure larger and heavier workpieces including toothed racks and punching tools. You can use the projector for a wide range of applications due to its generous 254 x 152 mm stage travel and 45 kg allowable stage loading.
