The MiniTest 70 enables non-destructive measurement of non-magnetic coatings (paint, synthetic material, chrome, etc.) on a ferromagnetic substrate (steel) and insulating coatings (lacquer, enamel, synthetic material, etc.) on conductive substrates (aluminium, copper, austenitic stainless steel).
The spring-mounted sensors are equipped with wear-resistant sensor poles to give especially high durability also when measuring abrasive substrates.

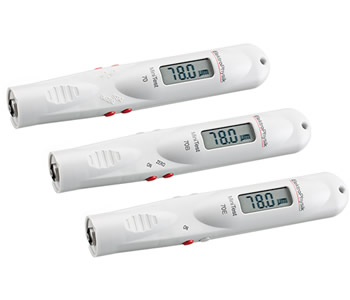

MiniTest 70: Coating thickness measurement in a practical pen format
MiniTest 70 is a lightweight and practical coating thickness measurement gauge in pen format with inbuilt sensors. It comes with several benefits:
- Precise measurement of coating thickness up to 3mm (F) or 2.5mm (N)
- A dual sensor automatically identifies the substrate and sets the appropriate measuring procedure: eddy currents or magnet-inductive (excluding model E)
- Wear-resistant probes for long service
- Weighs only 80 grams
MiniTest 70 F
With statistics display (number of readings taken, mean values, standard deviation, maximum, minimum).
Suited only for ferromagnetic substrates (e.g. steel).
Measuring range 0 to 3 mm / 118 mils.
Enables 1-point and 2-point calibrations.
MiniTest 70 FN
With statistics display (number of readings taken, mean values, standard deviation, maximum, minimum).
Suited for ferromagnetic substrates (e.g. steel) and also for non-ferromagnetic substrates (non-ferrous metals like aluminium, brass etc.).
Measuring range 0 to 3 mm / 118 mils on steel substrates and 0 to 2.5 mm / 95 mils on non-ferrous metals.
Enables 1-point and 2-point calibrations.
MiniTest 70 B-FN
Suited for ferromagnetic substrates (e.g. steel) and also for non-ferromagnetic substrates (non-ferrous metals like aluminium, brass etc.)
Measuring range 0 to 3 mm / 118 mils on steel substrates and 0 to 2.5 mm / 95 mils on non-ferrous metals.
Enables 1-point calibrations.
MiniTest 70 E-FN
Suited for ferromagnetic substrates (e.g. steel) and also for non-ferromagnetic substrates (non-ferrous metals like aluminium, brass etc.).
Measuring range 0 to 3 mm / 118 mils on steel substrates and 0 to 2.5 mm / 95 mils on non-ferrous metals.
Application
Non destructive measurement of:
- Non-magnetic coatings like varnishes, enamels, chromium and zinc on ferromagnetic base materials (e.g. steel)
- Insulating coatings like varnishes and anodic coatings on non-ferrous metals (e.g. aluminium, copper, austenitic stainless steel, brass)
Measuring principles
- Magnetic induction (F-type sensors) according to DIN EN ESO 2808, method 7C
- Eddy current (N-type sensors) according to DIN EN ESO 2808, method 7D
Features
- Accurate coating measurement of up to 3mm (F range) and 2.5 mm (N range)
- Dual sensor for automatic substrate identification and setting the suitable measuring principle: eddy currents or magnetic induction (not in model F)
- Wear-resistant probes with long service life
- lightweight: 80 grams / 2.8 oz only
Supply schedule
- MiniTest 70 device with integrated sensor
- Operating instructions
- 1 AA cell, type LR06
- Zero reference plate(s)
- Control standard
- Belt pouch
| Property | Value |
|---|---|
| Measuring range |
F: 0 mm - 3 mm N: 0 mm - 2,5 mm |
| Measuring principle | magnetic-induction/eddy currents |
| Signal processing | Sensor integrated 32-bit signal processing (SIDSP®) |
| Accuracy |
± (1.5 μm + 3% of reading) with 1-point calibration ± (0.06 mils + 3% of reading) with 1-point calibration ± (1.5 μm + 2% of reading) with 2-point calibration2 ± (0.06 mils + 2% of reading) with 2-point calibration2 |
| Repeatability | ± (1 μm + 1% of reading) / ± (0.04 mils + 1% of reading) |
| Low range resolution | 0,5 µm |
| Minimum curvature radius convex | 5 mm |
| Minimum curvature radius concave | 40 mm |
| Minimum substrate thickness |
F: 0,5 mm N: 0,04 mm |
| Measuring units | metric/imperial switchable |
| Calibration | standard, 1-point and 2-point calibration |
| Statistics | n, x, s, Min, Max |
| Operating temperature | -10 °C - 60 °C 14 °F - 140 °F |
| Storing temperature | -20 °C - 70 °C -4 °F - 158 °F |
| Power supply | 1x AA (Mignon)-Battery |
| International standards | DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, ASTM B 244, B 499, D7091, E 376 |
| Dimensions | approx. 157 mm length, Ø 27 mm; 5.2" length, Ø 1.06" |
| Weight | ~ 80 grams, 2.8 oz |
