Measuring Microscope TM Generation B Series

With this Toolmaker‘s Microscope you can measure dimensions and angles on small workpieces thanks to the optional analogue or digital micrometer heads and the built-in circular scale.

Further benefits of the TM Generation B include:

• Toolmakers microscopes well-suited for measuring dimensions and angles of features on small workpieces with the XY stage and rotating eyepiece scale.
• Compact design with recessed grips for better portability. The slim design makes this microscope ideal for use in areas with limited space.
• Powerful adjustable LED light sources for contour and surface illumination provide optimum lighting conditions for workpiece inspection.
• The TM Generation B is available with work stages of 50 x 50 mm or 100 x 50 mm.

Standard Measuring Microscopes MF Series

Standard Measuring Microscopes MF Series

Measuring Microscope MF Generation D (Manual, 2- or 3-axis)

MF Generation D Series: Manual models
This versatile measuring microscope, whether you use it to boost the performance with Mitutoyo‘s vision unit, for data management on a PC or other applications, offers you further improved measuring efficiency.

The MF offers you the following benefits:

• Measuring accuracy that is one of the highest in its class.
• Proven high-NA objectives from the ML optical series (long working distance type).
• Integration of metallurgical and measurement microscope functions enabling you to
• make high-resolution observations and high-accuracy measurements.
• Illumination unit (reflected/transmitted) gives you the option of a high-intensity LED or halogen bulb.
• The variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction.
• Variety of standardized stages in sizes up to 400 × 200 mm.
• Quick-release mechanism enabling you to move the stage quickly when measuring
• large or numerous workpieces.
• High-magnification eyepiece observation up to 2000X.
• A good choice of optional accessories, including a Vision Unit, various digital cameras or data management on a PC, promises a wide field of application and excellent measuring

Motor-Driven Z-axis MF-J Models

MF Generation D Series: Models with motorized Z-axis movement
The MF Generation D version with a motorized Z-axis. This feature renders fast and accurate Auto Focus possible when used in combination with the optional Vision Unit. The MF with motorized Z-axis is available in 3 stage sizes and incorporates all the functionality of the standard MF Generation D series.

The MF Generation D with motorized Z-axis offers the following benefits:

• Auto Focus function when using the optional Vision Unit.
• A measuring accuracy that is one of the highest in its class.
• Proven high-NA objectives (long working distance type).
• Integration of metallurgical and measurement microscope functions enabling you to
  make high-resolution observations and high-accuracy measurements.
• Illumination unit (reflected/transmitted) offers the option of a high-intensity LED or halogen bulb.
• The variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction.
• Variety of 3 standardized stages in sizes up to 400 × 200 mm.
• Quick-release mechanism enabling you to move the stage quickly when measuring large or numerous workpieces.
• High-magnification eyepiece observation up to 2000X.
• A large lineup of optional accessories, including a Vision Unit, various digital cameras and data management for a PC, grants a wide field of applications and excellent measuring
  efficiency.

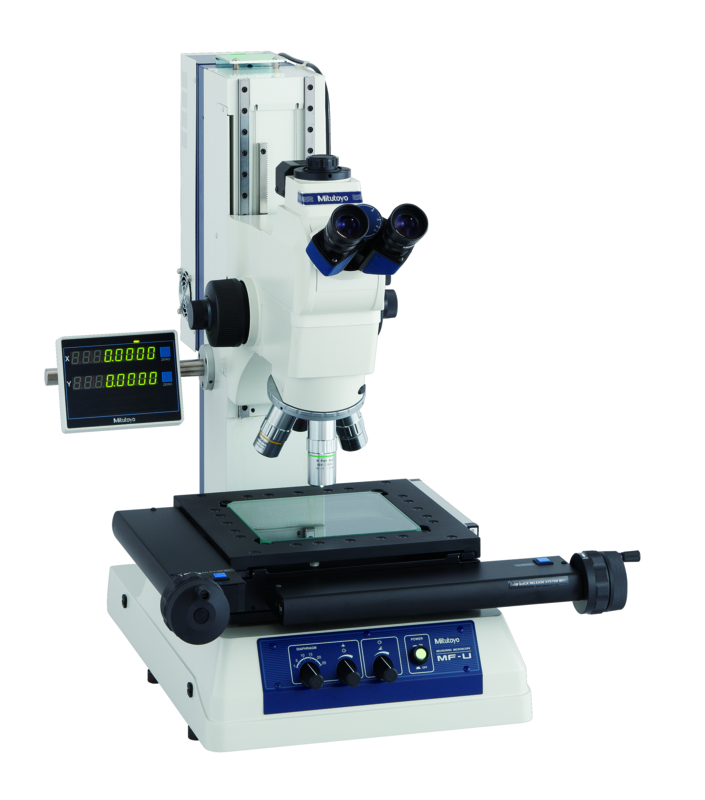

Universal Measuring Microscopes MF-U Series

Measuring Microscope MF-U Generation D (Manual, 2- or 3-axis)

MF-U Generation D Series: Manual models
This high-power multi-function measuring microscope gives you detailed observation with a clear and flare-less erect image and a wide field of view.
The MF-U offers you the following benefits:

• Measuring accuracy that is one of the highest in its class.
• Proven high-NA objectives from the FS optical system (long working distance type).
• Integration of metallurgical and measurement microscope functions enabling you to
  make high-resolution observations and high-accuracy measurements.
• Illumination unit (reflected/transmitted) gives you the option of a high-intensity LED or halogen bulb.
• The variable aperture diaphragm (reflected/ transmitted) allows observation measurement while suppressing light diffraction.
• Variety of standardized stages in sizes up to 400 × 200 mm.
• Quick-release mechanism enabling you to move the stage quickly when measuring
  large or numerous workpieces.
• High-magnification eyepiece observation up to 2000X.
• A good choice of optional accessories, including a Vision Unit, various digital cameras or data management on a PC, promises a wide field of application and excellent measuring
  efficiency.

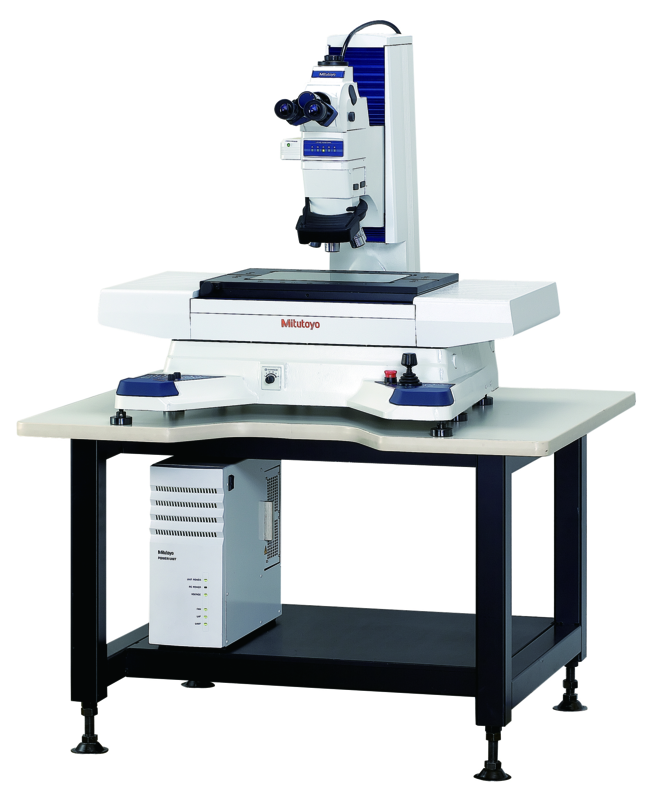

Measuring Microscope Hyper MF/MF-U Generation B Series

This measuring microscope has one of the highest XY measuring accuracies at 0,9+3L/1000 μm.
The Hyper MF-B/MF-UB offers you the following benefits:

• One of the highest XY measuring accuracies in the world (0,9+3L/1000)1 μm
• Selectable LAF (Laser Auto Focus) function.
• High operability and repeatability.
• Three-axis motorized control.
• You are offered the power-drive auto focus unit as standard.
• A range of useful fixtures is available that includes a wafer holder and swivel-centre support.

1. (L = measured length (mm) in XY plane, stage unloaded).
