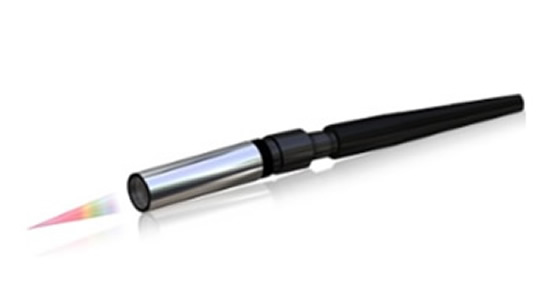

Contactless - Chromatic Focus

Contactless - Chromatic Focus

• Compact 8 mm diameter Transducer Head
• Perfect measurements on the reflective surface and Cam
• Thickness measurement from clear materials from 0.4 mm to 4 mm
• Diffraction correction
• 8 mm or 24 mm dzlt
• 1.5 mm or 5 mm measuring range
• Repeatability ± 1 µm
• Three operating modes
• Single Probe
• Measurement from Single Probe Clear Material
• Dual Probe - Two heads one controller, B + A
• Works with Orbit® Measurement Network, easily adapts to other sensors
• USB, Ethernet TCP, RS232, Wireless Bluetooth ™, Modbus, EtherNet / IP, Profinet interfaces

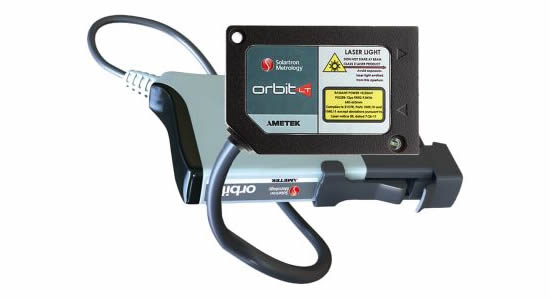

Contactless - Laser Triangulation

Contactless - Laser Triangulation

LTH and LTM Features

• Measuring ranges from 2 mm to 200 mm
• +/- 0.02% F.S. Precision
• Resolution up to 0.0076 µm
• 40 kHz sampling rate and up to 4 kHz output
• Laser Beam Control - on or off
• Connects to the Orbit® network, up to 150 sensors - with full control
• Automatic gain circuit - power automatically adjusts to optimum metering
• Clearance Time - Function bridging during void part measurement
• Propagation and Reflection modes
• LT Features
• 15 mm measuring range 45 mm offset
• Learning settings for different surfaces
• 0.1% F.S. Precision
• 3 µm resolution
