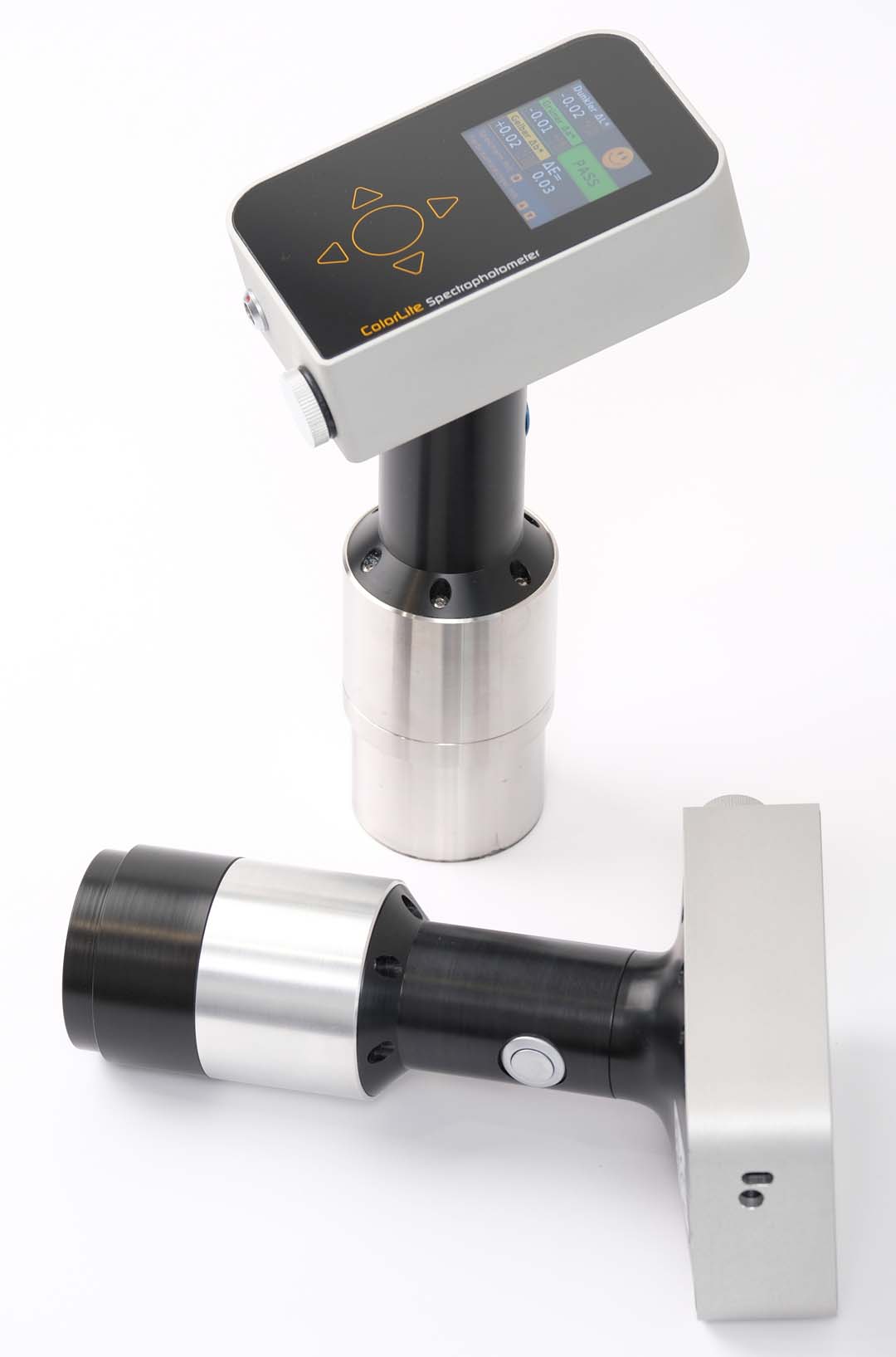

COLORLITE SPH RG2
ColorLite sph RG2
Made from solid materials – Spectrophotometer with highest protection class
Advantages
- Robust aluminium housing – dust and waterproof – IP65 class
- Worldwide communication of real-time measurement data directly via WiFi or Bluetooth 4.0
- Optional: Integrated data matrix scanne
- It’s so easy: Scan QR / barcode – measure sample – save data
- High powered LED-light source with an optimal life span
- Perfectly simple handling through intuitive user interface
- Memory space for 1000 standards and 350 sample photos
Resistant, robust and powerfu
Cold, wet, dust – that’s no problem for the unique RG2. Made from a massive aluminum housing, the RG2 is the perfect solution in harsh production environments.
Description
Our ambition for all products that we develop it is to offer our customers real added value. This means in order to keep one step ahead, in terms of functionality, ease of use and accuracy, we place the highest demands on ourselves.
The spectrophotometer ”Rugged 2” series has a number of unique features, setting it apart from our competitors. As the name suggests, the aim for the development was to produce a spectrophotometer that works reliably in rough environments and still offers the highest accuracy specifications.
The IP65 protection class means that it is dust and water resistant. We test this by submersing the complete spectrophotometer for short periods under water! The main housing unit is milled from a solid aluminium block, shot blasted and then finished with a hard anodise coating.
Applications
- Colour measurement and registration of goods intake and goods output according to DIN EN ISO 9000 standard
- Objective quality control of colours within a production
- Colour difference measurement to reference colours stored on the device
The delivery includes
- Certified white standard PTB (Physikalisch-Technische Bundesanstalt)
- Aluminium case with foam padding
- USB interface cable
- Battery charger
Different measuring geometries for your requirements
d/8° Colour Measurement standardised according to DIN 5033
d/0° Make inhomogeneous samples measurable with a large measuring area of 38mm.
| Measurement Geometry |
d/0° 40 mm area d/8° 6 mm area 45°/0° 10 mm area according to DIN5033 |
| Illuminants | D65, D55, D50, A, C, F11 |
| Colour Scales |
XYZ, Yxy, ΔE CIE L*a*b*, L*u*v*, L*C*h, Hunter Lab Remission Spectrum with cursor displaying wavelength and % CIE-L*a*b* Diagram incl. tolerance limits |
|
Quality Control Tolerance Limits and Colour Differences |
ΔE CIELab; ΔL, Δa, Δb; ΔL, Δu, Δv; ΔL, ΔC, Δh; Min/Max, PASS/FAIL, ΔECMC (1:1 und 1:2), CIE ΔE94, ΔE2000, dynamic index Metameric-Index for D65/A and D65/F11 according to DIN 6172 |
| Other Values |
Contrast: LRV (Light Reflectance Value) according to BS 8493:2008, Various White-Index values Various Yellowness-Index values |
| Spectral Light Source Measurement | Spectra and chromaticity measurement of light sources such as LED´s - optional |
| Sample Photos |
350 Colour photos to visualise scanning area Dimension: 160 x 120 Pixel |
| Spectral Range/ Wavelength | 400 nm to 700 nm |
| Spectral Resolution |
Holographic grating-Spectrometer FWHM @500 nm < 10 nm Scanning in 3,5 nm intervals Resolution: 115 x 16-Bit per scan |
| Display |
High resolution O-LED colour display: High contrast and low-Power 1/4-VGA, 320 x 240 Pixel |
| Camera | Data-Matrix und Barcode - Optional |
| Repeatability | < 0,03 ΔE CIELab |
| Light Source |
White and blue LED´s Life span > 20 years |
| Scanning Time |
Complete measurement cycle with calculation and readout time. < 1sec |
| Multiple Scanning | Mean calculation of 1 to 20 individual measurements with colour values and standard deviation statistics displayed |
| Memory |
Memory for 1000 standard colours Memory for 1000 colour values Memory for 300 spektra (400-700nm / 3.5nm) Memory for 350 sample-photos (160 x 120 Pixel) |
| Calibration |
With white standard certified by the PTB (Physikalisch-Technische Bundesanstalt) Optional - 2 stage calibration with working standards |
| Power Supply |
Rechargable Lithium Polymer battery Standard 18650 size Replaceable |
|
Standard Colour Management |
Standards loaded by - list with Best-Match tool - index-no. - entering name |
| PC and Internet Connection |
USB 2.0 Bluetooth© or WLAN |
| Printer Option | Direct to bluetooth lable printer |
| PC and Internet Connection |
USB 2.0 Bluetooth© or WLAN |
| Dimensions |
230mm x 130mm x 85mm Weight 830g |
| Ambient temperature | 5°C bis 45°C |
