SURFACE ROUGHNESS MEASUREMENT SYSTEMS

TECHNICAL DETAILS

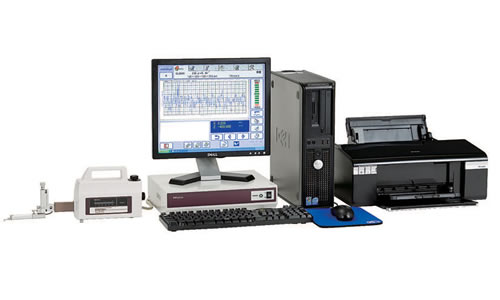

SURFTEST SJ-500P

Series 178 - Surface Roughness Measuring Instruments with Software FORMTRACEPAK

These are surface roughness measuring instruments with software FORMTRACEPAK.

Software FORMTRACEPAK offers you the following benefits:

It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
It can be used for several contour calculations within the measuring range.
It offers total support for measurement system control, analysis and inspection report.
All advantages of the SJ-500 also apply to the P Type.

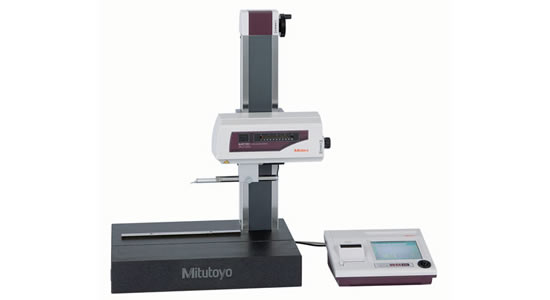

SURFTEST SV-2100

Series 178 - Surface Roughness Measuring Instrument

This is a stationary measuring instrument that allows you to easily and accurately measure surface roughness.

The Surftest SV-2100 offers you the following benefits:

It is mounted on a granite base with a manual or power column.
The large 19 cm [7.5“] colour TFT LCD gives you high visibility and touch-screen functionality.
It has a user friendly display unit for high precision surface roughness measurement.
It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
Designed for usage in workshop areas.

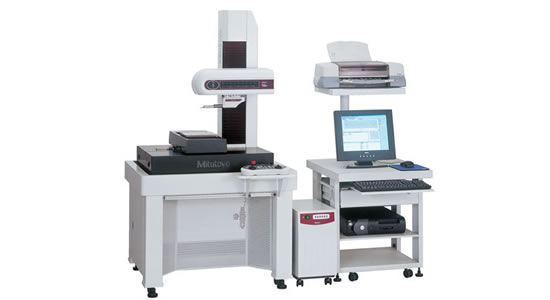

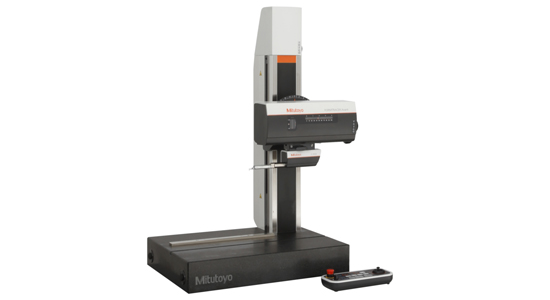

SURFTEST SV-3000CNC

Series 178 – CNC Surface Roughness Measuring Instrument

These is a fully CNC surface roughness measuring instrument with powerful software
FORMTRACEPAK.

The Surftest Extreme SV-3000CNC offers you the following benefits:

It is perfectly made for increased throughput of multiple profile and workpiece measurement tasks.
Each axis has a drive speed of up to 200 mm/s.
You can take continuous measurement over horizontal and inclined surfaces by power-tilting the drive unit.
Within the measuring range of the styli software FORMTRACEPAK supports contour calculation features.
3D topography measurement as option available.
Inclined plane measurement is possible through 2-axis simultaneous control in the X and Y
directions.
The detector unit incorporates an anti-collision safety device, causing it to automatically stop if its main body collides with a workpiece or jig.
All models equipped with Y-axis.
Z-axis tracking measurement for models without α-axis.

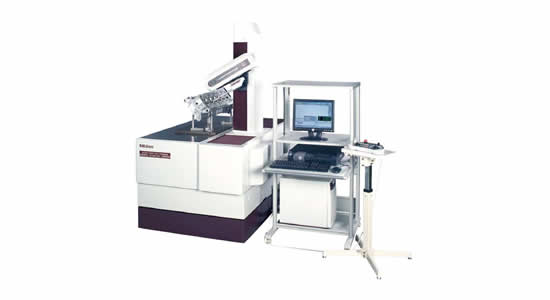

SURFTEST SV-M3000CNC

X=200mm; Y=800mm; Z2=500mm; α

Item number: 178-549-2

This is a top performance CNC surface roughness measuring instrument with powerful software FORMTRACEPAK.

The Surftest Extreme SV-M3000CNC offers you the following benefits:

You can measure large and heavy workpieces such as engine blocks and crankshafts.
It has an 800mm moving column configuration to largely eliminate workpiece size restrictions.
Each axis has a drive speed of up to 200 mm/s.
When combined with the optional detector swivelling unit, continuous measurement over the bottom, top and side surface of a workpiece is possible.
The huge load table has a self-contained structure ensuring that you can easily accommodate various size workpieces, standard and custom jigs, and auto-feed devices.
