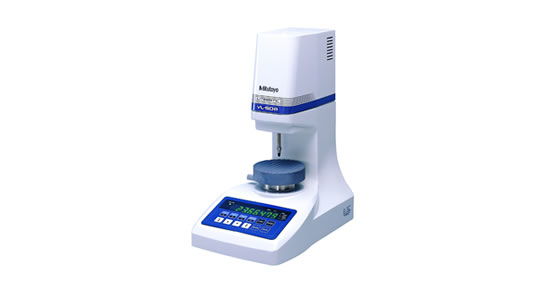

LITEMATIC VL-50 Motorized low force, high precision gauges
This is a high-accuracy gauge head with a separate controller.
The LITEMATIC VL-50 offers you the following benefits:
It has a measuring force of 0.01 N (1 gf) and a resolution of 0.01 μm.
Its constant and low measuring force makes it especially suitable for measuring soft materials such as rubber, plastic, film thicknesses or sensitive form parts.
The motor driven plunger gives you a range of approach and retraction speeds for safe and easy operation.
The head is supplied with a separate controller so you can mount it in a measurement fixture, or on the optional comparator stand.

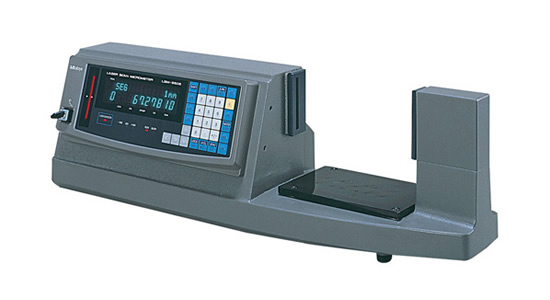

Laser Scan Micrometers
Mitutoyo offers Laser Scan Micrometer systems suitable for many precision measuring applications. Every product represents an excellent investment in terms of productivity, versatility, quality of construction and service support.
Each product component is designed using the latest CAD techniques to ensure maximum performance and manufactured from materials best suited to the purpose for guaranteed longevity, drawing on the unparalleled technological expertise of a world leader in metrology.
Data transfer is especially important in applications for this class of product, where many similar sensors may be in operation simultaneously, and Mitutoyo’s dedicated sensor software is designed for fast and reliable transfer of measurement results to distributed SPC systems.
Laser Scan Micrometer Measuring Unit and Display Unit Package
Laser Scan Micrometer Measuring Unit
Laser Scan Micrometer
Laser Scan Micrometer Display Unit
Laser Scan Micrometer Optional Accessories

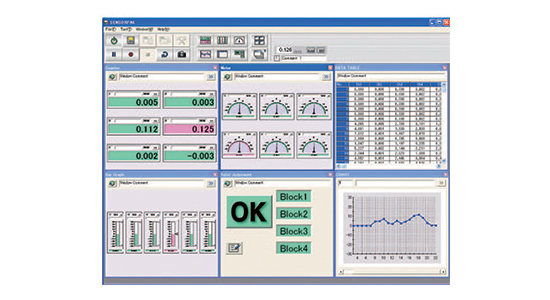

SENSORPAK
The SENSORPAK supports the development of measuring facilities and measuring stations.
It offers you the following benefits:
It can simultaneously display measurement values from up to 60 sensors in real time.
You can make calculations using measurement values from up to 30 sensors in real time.
It enables a huge range of different graphical presentations of using measurement, such
as number representation, pointer representation, scale representation.
Data registration can be made in control cards or data tables.
You can also carry out further data processing with external software, such as
Microsoft® Excel® or MeasurLink.
Output function:
Direct output to Microsoft® Excel® spreadsheet, CSV file output (compatible with MeasurLink)
Total
tolerance
judgement:
GO/NG judgement (by specifying gauges to be used for total tolerance judgement)
GO/NG signal output with optional I/O cable
Input
function:
Trigger function : by means of keys timer or external TRG (with optional I/O cable)
Data input frequency : Max. 9999 times (with 60 gages connected) to 60000 times (with 6 gages connected)

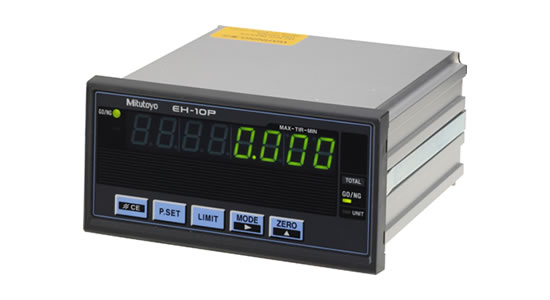

Applicable counter:
Counters with RS-232C interface (EH and EV), with USB interface (EH)
Display:
Display type : Counter, bar graph, meter, chart (capable of simultaneous display)
Tolerance judgement result : Color display (green/red)
Connectable gauges : Max. 60 gages
